MacArtney Terminates EOM Cable for Defence Customer

MacArtney Canada, working for an unnamed defence organisation, terminated two 500 m electro-optical-mechanical (EOM) cables for a towed subsea system.

The double armoured EOM cables will facilitate power and telemetry to the payload while supporting its mechanical load.

TrustLink steel termination

On each cable’s ‘wet end’, the workshop team at MacArtney Canada installed a customised TrustLink Type IV-S steel termination, allowing mechanical strain transfer from the towed system to the cable armour isolating the copper or electrical conductors from the force. A moulded bend restrictor was potted onto the cable, protecting it from exceeding its minimum bend radius.

Connectivity solution

The inner cable bundles were threaded through the TrustLink terminations, through protective hoses, and moulded in place. At the end of the cable, x8 SubConn^® Power 1 kV inline cable whips were wired and moulded onto each cable in ‘y-splice’ configurations. The optical conductors within the cable bundle were also fused and moulded with OptoLink A04 CCP whips.

The armour was cut, clamped, and moulded in place on the ‘dry’ end of each cable. The inner cable bundles were threaded through tubes and moulded. The electrical and optical conductors were terminated in a ‘y-splice’ mould with SubConn^® Power 1 kV inline whips and OptoLink A04 CCP whips, respectively.

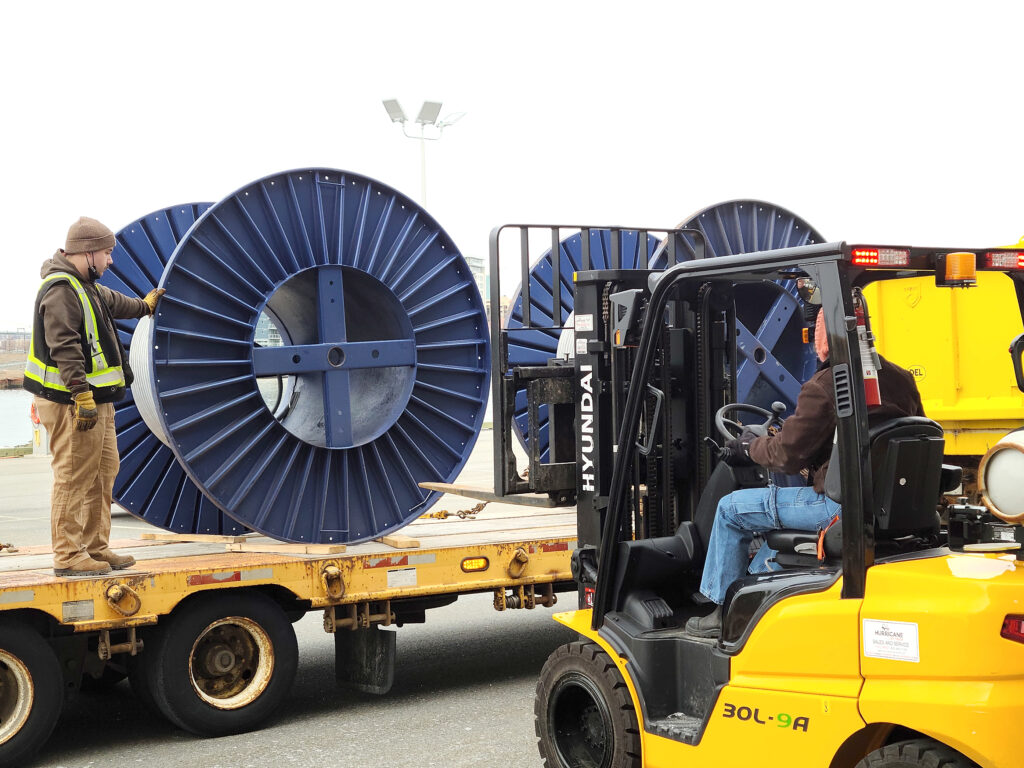

Both cable reels were tested successfully and delivered to the customer on schedule.

Custom cable terminations
Projects such as these are a testament to the MacArtney Group’s expertise in custom cable terminations, whether they be electrical, optical, or mechanical in nature, connectivity solutions, and facilitating telemetry for ruggedised systems.

TrustLink, SubConn^®, and OptoLink products are chosen and trusted by MacArtney’s customers industry-wide for their high build quality and unmatched dependability.
